Discover the CNC Machining Process at CNCTech

Advanced Technology, High Precision, and ISO 9001 Certification

1. Overview of CNC Machining

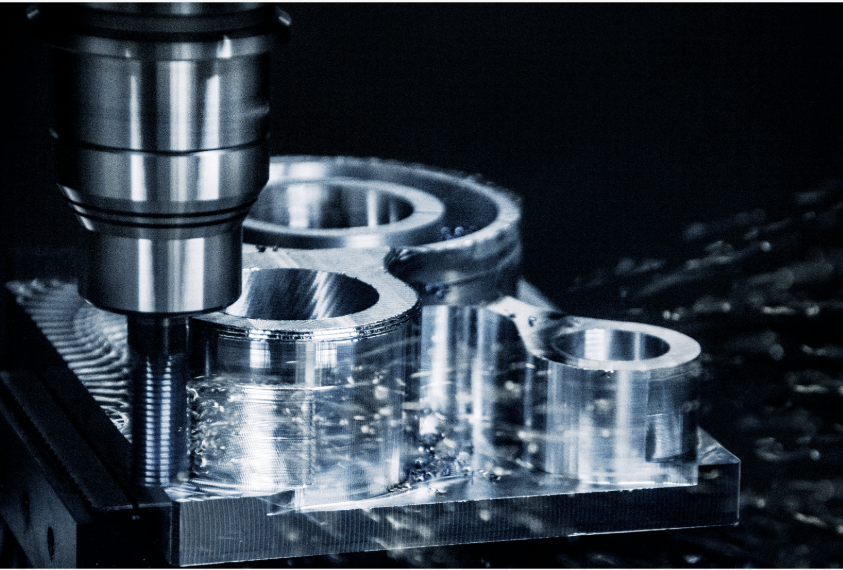

At CNCTech, our CNC machines guarantee high precision and efficiency.

CNC (Computer Numerical Control) is an automated machining technology that operates based on computer programming, enabling processes such as milling, cutting, drilling, and shaping various materials with exceptional accuracy and speed. This technology is the optimal solution for manufacturers looking to improve product quality, minimize errors, and streamline production processes.

At CNCTech, we have developed advanced CNC technology compliant with ISO 9001-certified manufacturing processes, helping customers reduce costs, improve production efficiency, and ensure superior product quality.

Currently, the three most commonly used CNC machines in industrial manufacturing are:

CNC milling machines
CNC lathes
CNC drilling machines

2. CNC Machining Process

The fundamental CNC machining process includes the following stages:

CAD Model Design
Conversion of CAD Files into CNC Programs
CNC Machine Setup
CNC Machining Execution
Machining Process Monitoring

2.1 CAD Model Design

Professional CAD software is used to create 2D and 3D designs.
The design undergoes quality checks to optimize the machining process.
The file is exported in STEP or IGES formats for CNC machine compatibility.

Once the CAD design is finalized, it is converted into a CNC-compatible format such as STEP or IGES.

2.2 Conversion of CAD Files into CNC Programs

CAM software generates precise tool paths.
G-code and M-code are created to control CNC machines.
A simulation is conducted to ensure program accuracy before production.

Once the CNC program is finalized, the operator uploads it to the CNC machine.

2.3 CNC Machine Setup

Before machining begins, CNCTech’s technicians meticulously set up the CNC machine, including:

Securing the workpiece onto the machine or fixture.
Configuring the cutting tools, such as drills, end mills, and face mills.
Adjusting parameters based on material type and job specifications.

This standardized setup minimizes errors, reduces material waste, and enhances overall efficiency. Once the setup is complete, the CNC program is executed.

2.4 CNC Machining Execution

Once setup is complete, the CNC machine follows pre-programmed instructions to cut, mill, or drill materials. Machining operations include:

Milling – Removing material to create surfaces, slots, and complex shapes.
Turning – Rotating the workpiece while cutting tools shape external and internal features.
Drilling – Producing precise holes with exact depth and diameter.
Thread Cutting – Creating screw threads for fastening applications.

At CNCTech, we prioritize precision and efficiency to minimize material waste while achieving high-quality machining results.

2.5 Machining Process Monitoring

During the machining process, operators continuously monitor operations through a computer control system, allowing them to:

Detect tool wear or imbalance at an early stage.
Adjust machining parameters in real time to maintain accuracy.
Conduct quality control using CMM (Coordinate Measuring Machines), spectrometers, and laser scanning for precise dimension verification.

By integrating advanced monitoring systems, CNCTech ensures consistent quality and precision for every CNC-machined component.

3. Advantages of CNC Machining

CNC machining offers numerous benefits, making it the industry-standard manufacturing technique:

High Precision & Reliability – CNC machines achieve tight tolerances of up to ±0.001mm, ensuring exceptional accuracy for complex components.
Enhanced Production Efficiency – Automated machining speeds up production while maintaining high repeatability, reducing manual labor and human errors.
Versatile Material Compatibility – CNC machining is suitable for metals, plastics, composites, and even ceramics.
Cost-Effective Manufacturing – Optimized material usage reduces waste, leading to significant cost savings.
Scalability & Mass Production – CNC machining supports both small-batch prototyping and large-scale production.
